This Disc Mills Models FFC-15S and FFC-23S described in this two small kinds of pulverizers. They are used for processing cereal, feeding stuffs and drugs. Both these mills have the features of simple construction,small size and light weight, and the Model FFC-15S is especially suitable for the laboratory of a scientific research insitution. The Disc Mills Model FFC-37S and FFC-45S are versatile kind of pulverizer, capable of effectively grinding or reducing a very wide range of raw materials, either wet or dry. The mills are especially ideal for the even grinding of cereals and feeding stuffs such as maize, soya bean, sorghum, sun-dried sweet chips, oil cakes and other similar products, and will rapidly take and reduce them all to a finer degree in one operation, with no residue left in the machine. Apart from the above-mentioned application, they can also be used for the rapid beating of pulp, reduction of chemical materials and wet grinding of watery foodstuffs, such as fresh fruits, fresh sweet potato, wet soya bean etc,. Efficiency is good and they are always free from being clogged. |
Disc Mills
Model |
DM-WZ150 |
DM-WZ200 |
DM-WZ250 |
DM-WZ300 |
Productivity |
40 kg/h |
60 kg/h |
100 kg/h |
120 kg/h |
Voltage |
220v |
220v |
220v |
220v |
Power |
0.55 kW |
1.1 kW |
1.5 kW |
2.2 kW |
Weight |
50 kg |
85 kg |
105 kg |
120 kg |

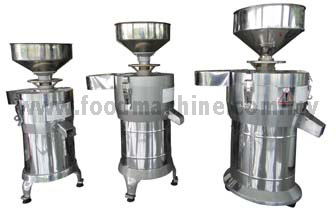

Model |
FDM-Z100 |
FDM-Z125 |
FDM-Z150 |
Productivity (kg/h) |
35 kg/h |
80 kg/h |
90-100 kg/h |
Rated Power Input (W) |
750 |
1100 |
2200 |
Phase |
Single |
Single |
Single |
Rated Voltage (V) |
240V |
240V |
240V |
Rated Cycle (Hz) |
50 |
50 |
50 |
Weight (Kg) |
28 |
50 |
60 |
Dimensions (mm) (LxWxH) |
460 x 225 x 670 |
530 x 270 x 700 |
590 x 320 x 860 |
Model |
MH-230 |
MH-280 |
MH-320 |
Productivity |
21 – 23.5 kg/hr |
30 – 45 kg/hr |
50 – 140 kg/hr |
Grinding Stone Diameter |
92 MM |
100 MM |
120 MM |
Stone |
Corundum |
Corundum |
Corundum |
Voltage |
240v |
240v |
240v |
Power |
1 HP |
1 HP |
2 HP |
Weight |
21 KG |
40 KG |
57 KG |
Dimensions (L x W x H) MM |
400 x 400 x 630 |
400 x 470x 1030 |
560 x 500x 1120 |
Design and technical specification subject to change for improvement without prior notice.
Made In Taiwan
Model |
Main Shaft Rotation Speed |
Housing Diameter |
Oblate Gear in the Rotator |
Knucle Gear in the Rotator |
Pitch b/tw Obtan & Screed |
Siere Size |
Elector Motor |
Weight (kg) |
FFC-15S |
9000 rpm |
Ø 150 |
3 |
3 |
9 |
1.2,0.6 |
1.1 kw |
18 |
FFC-23S |
5800 rpm |
Ø 230 |
4 |
8 |
19 |
3.6,1.2,0.6 |
3 kw |
65 |
FFC-37S |
3600 rpm |
Ø 370 |
4 |
8 |
16.5 |
3.6,1.2,0.6 |
7.5 kw |
158 |
FFC-45S |
3000 rpm |
Ø 450 |
5 |
12 |
16.5 |
3.6,1.2,0.6 |
11 kw |
224 |
Design and technical specification subject to change for improvement without prior notice.
Made In Taiwan
Model |
HR-2200 |
Productivity (kg/hr) |
30 ~ 50 kg/h |
Degree of Fineness |
50 – 200 mesh |
Speed |
1500 r/min |
Voltage |
220v/50Hz, Single phase |
Power |
2200w |
Weight (kg) |
35 |
