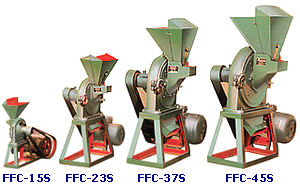

This Disk Mills Models
FFC-15 and FFC-23 described in this two small kinds of pulverizers.
They are used for processing cereal, feeding stuffs and drugs.
Both these mills have the features of simple construction, small
size and light weight, and the Model FFC-15 is especially suitable
for the laboratory of a scientific research institution. The Disk
Mills Model FFC-37 and FFC-45 are versatile kind of pulverizer,
capable of effectively grinding or reducing a very wide range of
raw materials, either wet or dry.
The mills are especially ideal for the even grinding of cereals
and feeding stuffs such as maize, soya bean, sorghum, sun-dried
sweet chips, oil cakes and other similar products, and will
rapidly take and reduce the all to a finer degree in one
operation, with no residue left in the machine. Apart from the
above-mentioned application, they can also be used for the rapid
beating of pulp, reduction of chemical materials and wet grinding
of watery foodstuffs, such as fresh fruits, fresh sweet potato,
wet soya bean, etc. Efficiency is good and they are always free
from being clogged.
|
|
|
|
MODEL |
Main
Shaft Rotation Speed |
Housing
Diameter |
Oblate
Gear in the Rotator |
Knucle
Gear in the Rotator |
Pitch
b/tw Obtan & Screed |
Siere
Size |
Weight
(kg) |
Elector
Motor (Kw) |
|
FFC-15 |
9000
rpm |
Ø 150 |
3 |
3 |
9 |
1.2,
0.6 |
18 |
1.1 |
|
FFC-23 |
5800
rpm |
Ø 230 |
4 |
8 |
19 |
3.6,
1.2, 0.6 |
65 |
3 |
|
FFC-37 |
3600
rpm |
Ø 370 |
4 |
8 |
16.5 |
3.6,
1.2, 0.6 |
158 |
7.5 |
|
FFC-45 |
3000
rpm |
Ø 450 |
5 |
12 |
16.5 |
3.6,
1.2, 0.6 |
224 |
11 |
|
|
|
|
|
|
